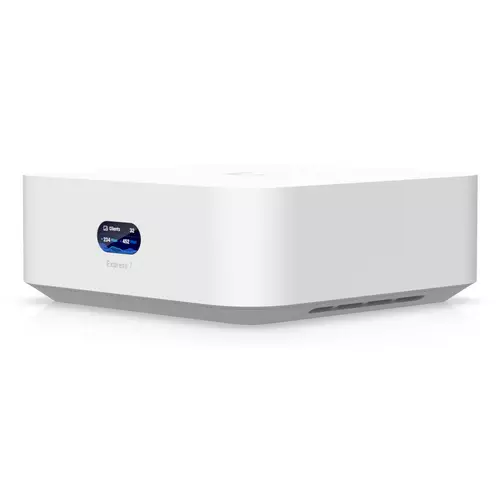

Ubiquiti UniFi Express 7 gateway/controller 10 100 1000 2500 10000 Mbit/s

Mesh-scalable super-compact 10G Cloud Gateway with integrated WiFi 7.

Dimensions

117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')

UniFi Application Suite

Network Yes

Managed UniFi Devices

30

Simultaneous Users Connected

300

Default WAN Ports

(1) 10 GbE RJ45

LAN Ports

(1) 2.5 GbE RJ45

IDS/IPS Throughput

2.3 Gbps

Form Factor

Compact desktop

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI and Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions Domains Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

20000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

Yes

License-Free SD-WAN

Yes

Site to Site VPN

Site Magic Yes IPsec Yes OpenVPN Yes

VPN Server

Identity Endpoint One-Click VPN Yes Teleport Zero-Configuration VPN Yes WireGuard Yes OpenVPN Yes L2TP Yes

VPN Client

OpenVPN Yes WireGuard Yes

Dynamic Routing - OSPF

Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

Policy-based WAN and VPN Routing

Yes

Customizable DHCP Server

Yes

IPv6 ISP Support

Yes

IGMP Proxy

Yes

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E WiFi 7)

Throughput

6 GHz 5.7 Gbps 5 GHz 4.3 Gbps 2.4 GHz 688 Mbps

MIMO

6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Antenna Gain

6 GHz 6 dBi 5 GHz 7 dBi 2.4 GHz 4 dBi

Wireless Security

WPA-PSK WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

4 per Radio (Gateway Mode) 4 per Radio (AP Mode)

Supported Data Rates

802.11a 6 9 12 18 24 36 48 54 Mbps 802.11b 1 2 5.5 11 Mbps 802.11g 6 9 12 18 24 36 48 54 Mbps 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15 HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2 VHT 20/40/80/160) 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2 HE 20/40/80/160) 802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2 EHT 20/40/80/160/240/320)

Max. Power Consumption

22W

Power Method

USB type C (5V DC/5A)

Power Supply

USB type C (5V DC/5A) (Adapter included)

Max. TX Power

6 GHz 24 dBm 5 GHz 26 dBm 2.4 GHz 23 dBm

Supported Voltage Range

100-240V AC

Processor

Quad-core ARM Cortex-A53 at 1.5 GHz

System Memory

3GB

Weight

422 g (14.9 oz)

Enclosure Material

Polycarbonate

LCM Display

0.96" status display

Management

Ethernet Bluetooth

System LEDs

Ethernet

Certifications

CE FCC IC

Button

Factory Reset
